Water And Foam Partable Fire Extinguishers ( Stored Pressure / Gas Cartridge Type )
![water-foam-partable-fire-extinguisher-isi](img/water-foam-partable-fire-extinguisher-isi.jpg)
![water-foam-partable-fire-extinguisher](img/water-foam-partable-fire-extinguisher.jpg)

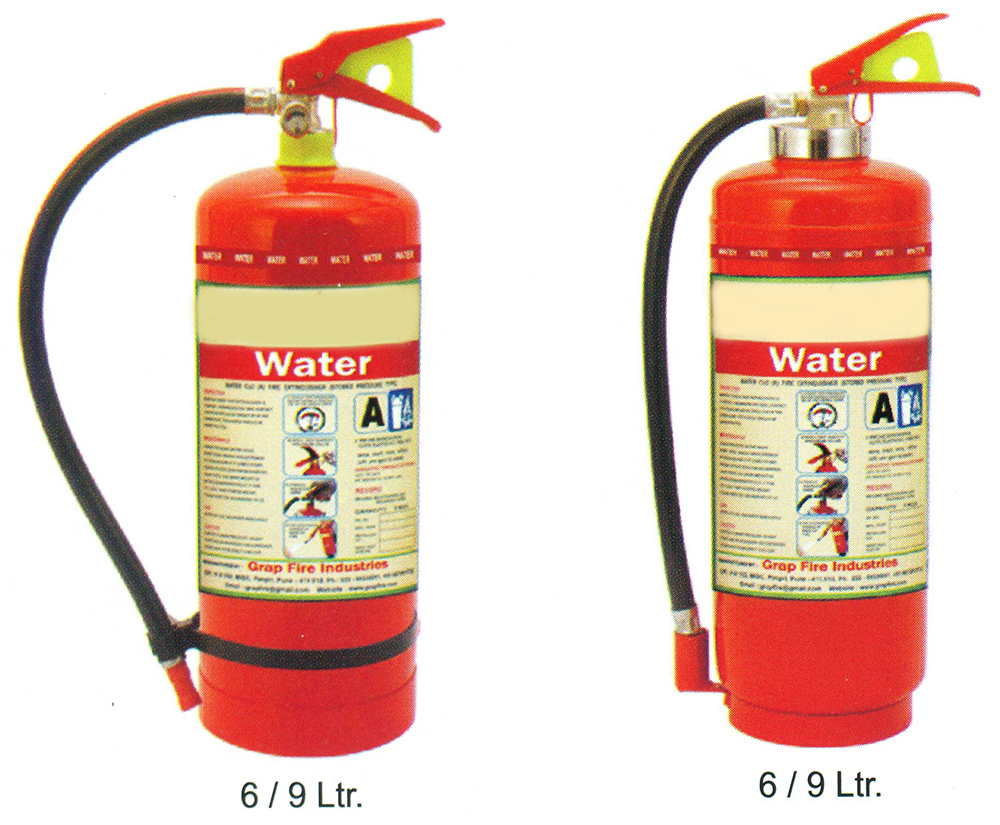

WATER Partable Fire Extinguisher
![water-foam-partable-fire-extinguisher](img/water-foam-partable-fire-extinguisher1.jpg)

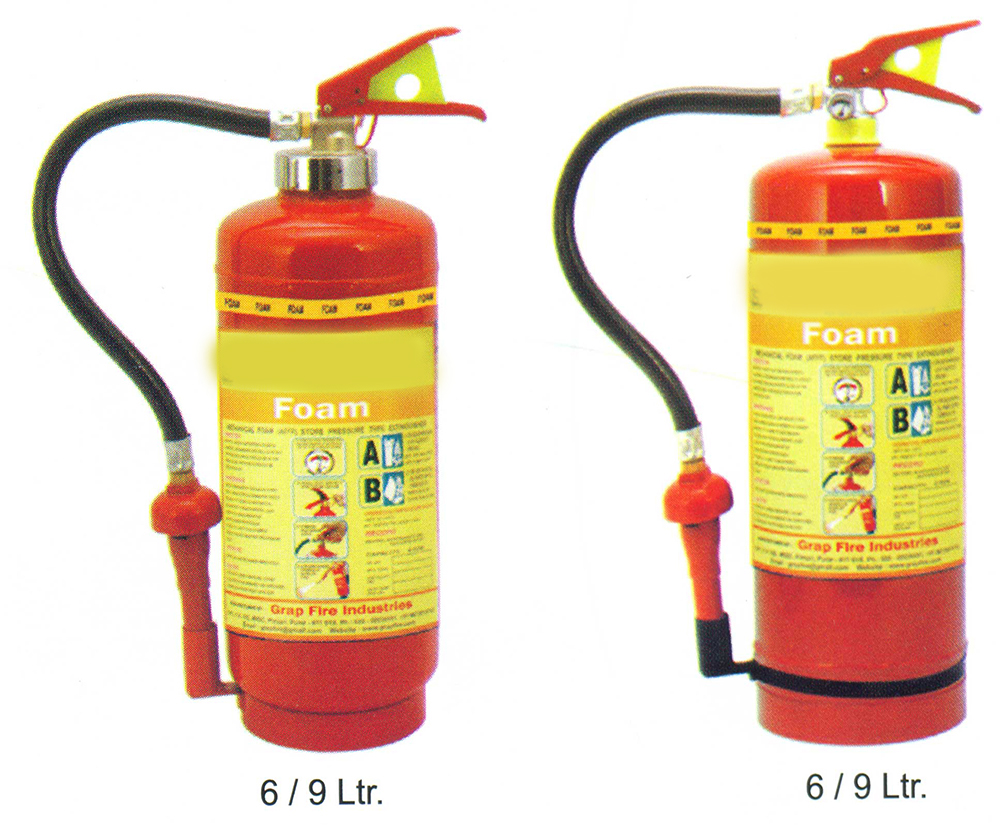

FOAM Partable Fire Extinguisher
Technical Specification
WATER |
FOAM |
|||
Capacity (Ltr.) |
6 |
9 |
6 |
9 |
Anti-Corrosive Inhibitor |
Epoxy Polyester Powder coating |
Epoxy Polyester powder coating |
Epoxy Polyester powder coating |
Epoxy Polyester powder coating |
confirming IS code |
15683 |
15683 |
15683 |
15683 |
Type of Extinguisher |
constant Pressure/ Gas Cartridge |
Constant Pressure/Gas Cartridge |
Constant Pressure/Gas Cartridge |
Constant Pressure/Gas Cartridge |
Type of Extinguishing Media |
Soft Water |
Soft Water |
Water & AFFF IS4989 |
Water & AFFF IS4989 |
Wxpellant |
Pressurized with N2 gas / 60gm Gas Cartidge |
Pressurized with N2 gas/90gm/ 120gm Gas Cartridge |
Pressurized with N2 gas/60gm Gas Cartridge |
Pressurized with N2 gas/90gm/120gm Gas Cartridge |
Minimum Effective Discharge ( % ) |
95 |
95 |
95 |
95 |
Minimum Jet Length (mtrs.) |
More than 2 mtr. |
More than 2 mtr. |
More than 2 mtr. |
More than 2 mtr. |
Discharge Time (Sec.) |
More than 13 Sec. |
More than 13 Sec. |
More than 13 Sec. |
More than 13 Sec. |
Hydraulic Test Pressure ( Kgf/cm2) |
35 |
35 |
35 |
35 |
Operating Position |
Upright |
Upright |
Upright |
Upright |
Charged Pressure (Kgf/cm2) |
15 |
15 |
15 |
15 |
Operating Temperature Range (°C) |
0 to (+) 55 |
o to (+) 55 |
o to (+) 55 |
o to (+) 55 |
Opperating Valve |
Squeeze Grip Type with Discharge hose and Nozzle |
Squeeze Grip Type with Discharge hose and Nozzle |
Squeeze Grip Type with Discharge hose and Nozzle |
Squeeze Grip Type with Discharge hose and Nozzle |
Fire Rating |
2A |
3A |
2A, 21B |
3A, 55B |
Application
Class A Fire : Wood, Textiles, Paper, Plastics, Clothes, Cotton, Mill, Jute Mill etc.
Caution : Do not use on Electrical & Oil Fire
