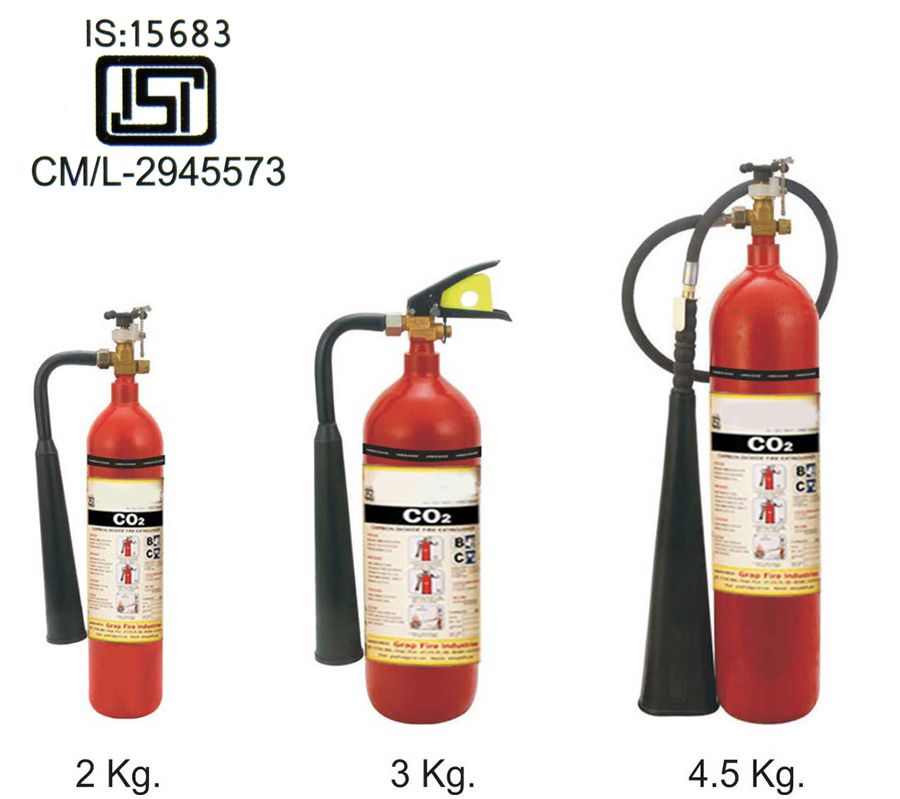

Carbon Dioxide Portable Fire Extinguishers

carbon-di-oxide-portable-fire-extinguisher1

Technical Specification

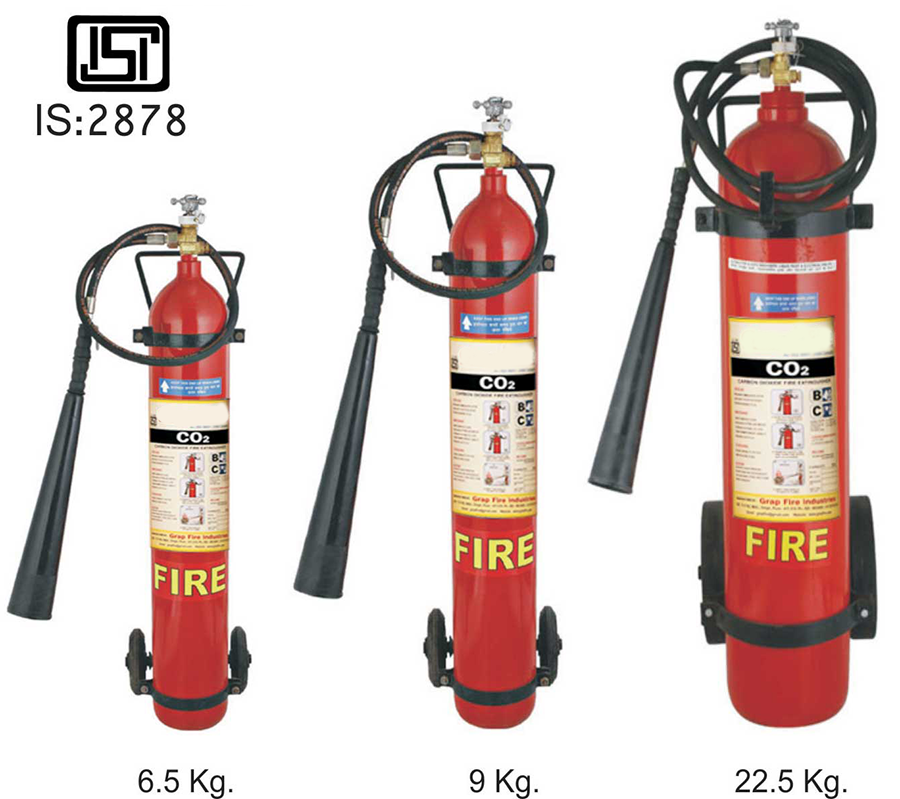

	Portable Fire Extinguisher			Trolley Mounted Fire Extinguisher
Conforming IS Specn.	15683	15683	15683	2878	2878	2878
Capacity (Kg)	2	3	4.5	6.5	9	22.5
Falling Ratio	0.667	0.667	0.667	0.667	0.667	0.667
Type of Extinguishe	Co2 Type	Co2 Type	Co2 Type	Co2 Type	Co2 Type	Co2 Type
Type of Extinguishing Media	CO2 Gags	CO2 Gags	CO2 Gags	CO2 Gags	CO2 Gags	CO2 Gags
Expellant Min. Effective Discharge (%)	Self 95	Self 95	Self 95	Self 95	Self 95	Self 95
Min. discharge Time (Sec.)	More than 8	More than 8	More than 8	10 to 20	15 to 36	20 to 60
Min. Throw (mtr.)	1	1	2	-	-	-
Operating Position	Upright	Upright	Upright	Upright	Upright	Upright
Opperating Valve(IS 3224)	Wheel / Squeeze Grip Type	Wheel / Squeeze Grip Type	Wheel / Squeeze Grip Type	Wheel / Squeeze Grip Type	Wheel / Squeeze Grip Type	Wheel / Squeeze Grip Type
Operating Temperature range (C°)	(-)30 to (+)55	(-)30 to (+)55	(-)30 to (+)55	(-)30 to (+)55	(-)30 to (+)55	(-)30 to (+)55
Fire Rating	8B, C	13B, C	21B ,C	-	-	-

Application

Class B Fire : Petroleum, Oil, Diesel, Paint, Varnish, Solvent, Aviation Fuel, Flammable and Volatile, Liquids etc.
Class C Fire : Flammable Gasses, Live Electrical Equipments, Industrial Gases, Electrical Installation etc.
Also available in 45 kgs
