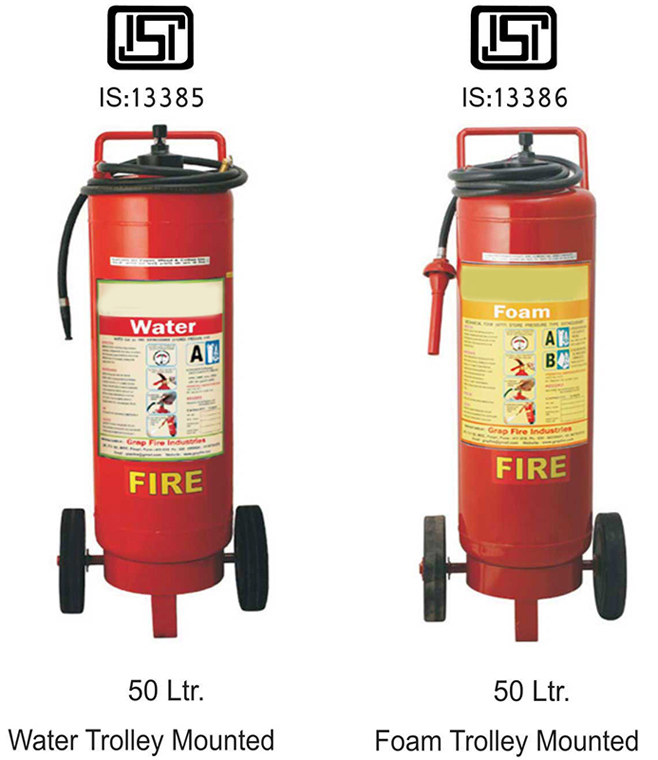

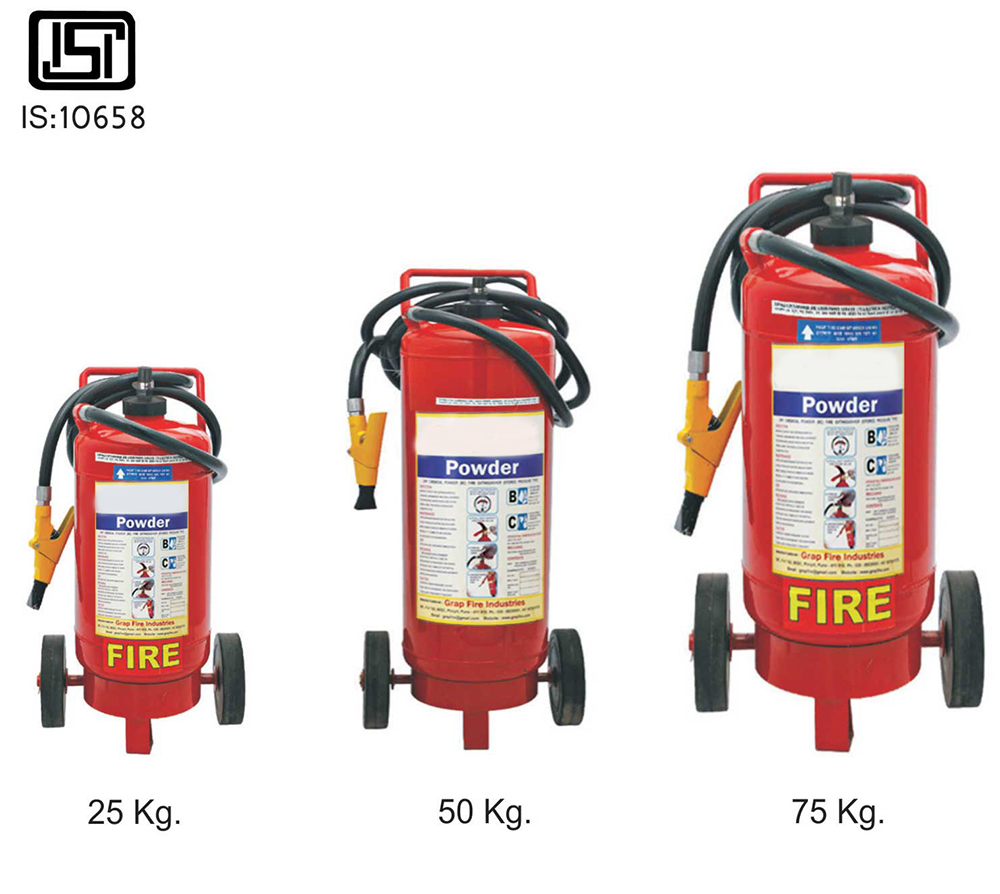

Trolley Mounted Fire Extinguishers, Water Trolley Mounted, Foam Trolley Mounted, Fire Extinguisher Manufacturer, Supplier, Exporter
Technical Specification
Conforming IS Specn. |
10658 |
10658 |
10658 |
13385 |
13385 |
Capacity (Kg) |
25 |
50 |
75 |
50 |
50 |
Falling Ratio |
BC / ABC |
BC / ABC |
BC / ABC |
A Class |
A & B Class |
Type of Extinguishe |
Dry Powder Type |
Dry Powder Type |
Dry Powder Type |
Water Type |
Macanical FoamType |
Type of Extinguishing Media |
Dry Chemical Powder |
Dry Chemical Powder |
Dry Chemical Powder |
Soft Water |
Water & AFFF (3 Ltr. of 6% Concentrate) |
Expellant |
Internal / External Gas Cartridge (300gm ( IS 4947) / 2kg) |
Internal / External Gas Cartridge |
Internal / External Gas Cartridge |
Internal / External Gas Cartridge (300gm ( IS 4947) / 2kg) |
Internal / External Gas Cartridge (300gm ( IS 4947) / 2kg) |
Min. Effective Discharge (%) |
85 |
85 |
85 |
95 |
90 |
Min. Jet Length (mtrs.) |
6 |
8 |
10 |
10 |
10 |
Discharge Time (Sec.) |
25 to 30 |
25 to 30 |
5 to 60 |
60 to 80 |
40 to 180 |
Hydraulic Test Pressure (kgf / cm2) |
30 |
30 |
30 |
30 |
30 |
Operating Position |
Upright |
Upright |
Upright |
Upright |
Upright |
Also available in UL Listed Powder
Application
Class A Fire : Wood, Textiles, Paper, Plastics, Clothes, Cotton, Mill, Jute Mill etc.
Class B Fire : Petroleum, Oil, Diesel, Paint, Varnish, Solvent, Aviation Fuel, Flammable and Volatile, Liquids etc.
Class C Fire : Flammable Gasses, Live Electrical Equipments, Industrial Gases, Electrical Installation etc.
Caution : Do not use on Electrical Fire / Installation
Also Available in 20 Litres, 45 Liters, 60 Liters, 125 Liters
