Fire Hose Reels

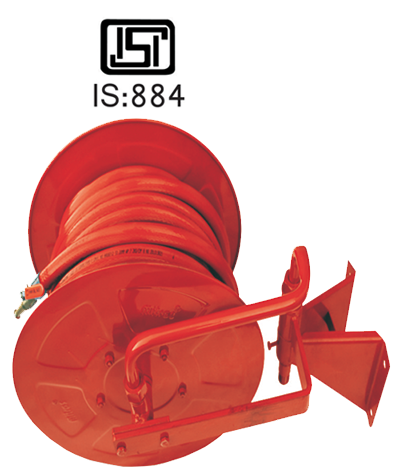

First - Aid Hose Reel As per IS 884

Technicai Specifications
Type : Swinging 180⁰ Wall Mounting
Size : Intel 20mm (3/4" BSP Thread Size)
Conforming Specification : IS 884

Material of Construction :

Hub Sides & Wall Bracket	-	M.S. Sheet of IS : 543
Swivel Joint	-	LTB-2 of IS : 318
Pipe with Fitting	-	Steel of IS : 1239 Part I
Branch Pipe with Nozzel	-	IS : 8090
Hose Reel Tubing	-	Thermoplastic Hose (IS : 12585) Rubber Hose (IS : 444)

Performance Test
• Hydrostatic Test: Tested at 21 Kgf/cm²
• Range & Water Flow rate test at 7 Kgf/cm²
(A) Discharge : 24LPM (B) Range (Jet Length) : mtr(min)

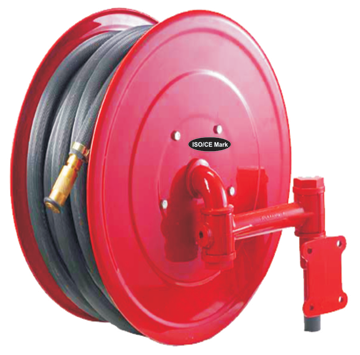

Fire Hose Reel

Features :

Side Plates	-	Made of high quality mild steel, powder coated in Red color
Side Plates 0. D. (Diameter)	-	560mm
Distance Between Side Plates	-	6 Inches
Water Ways	-	Made from non - ferrous metal (Aluminium Alloy) for making it corrosion - free, duly powder coated.
Horse Reel Drum	-	Confirming to ISO, CE
Fire Horse	-	High quality semi - rigid ISI marked (Type -1 & Type- ) / CE marked fluted finish GRAP FIRE Thermoplastic Hos with 2 years Guarantee. Horse Colours
Available	-	Red / Black / Yellow color.
Hose Nominal Bore (ID)	-	19mm / 20mm / 25mm, as per your requirement.
Hose Length	-	20 / 25 / 30 / 36 / 40 rntrs. as per requirement.
Shut-off Nozzle	-	Rotary operated, leak proof, CE marked hydraulically crimped with corrosion - fress Stainless Steel fitting, shutt - off nozzle with shut, spray & jet fuctions, made of super - tough Polymer Alloy in red colour.
Swivel	-	1800 double swivel.
Working Pressure	-	1.2 Mpa (12 Bar).

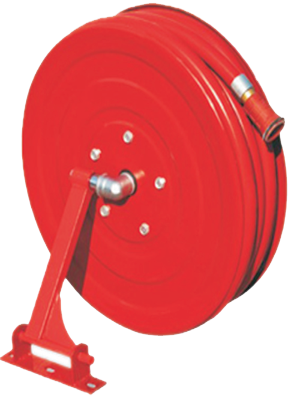

Commercial Hose Reel

Features :

Side Plates	-	Made of high quality mild steel, powder coated in Red color
Side Plates 0. 0. (Diameter)	-	500mm
Distance Between Side Plates	-	6 Inches
Water Ways	-	Made from non-ferrous metal for making it corrosion-free, duly powder coated.
Horse Reel Drum	-	Confirming to ISO/CE
Fire Horse	-	High quality semi-rigid ISI marked (Type-1 & Type-2)/ CE marked fluted finish MITRAS Thermoplastic Hose with 2 years Guarantee.
Horse Colours Available	-	Red / Black / Yellow color.
Hose Nominal Bore (ID)	-	19mm / 20mm / 25mm, as per your requirement.
Hose Length	-	20 / 25 / 30 / 36 / 40 rntrs. as per requirement.
Shut-off Nozzle	-	Rotary operated, leak proof,
Swivel	-	double swivel.
Working Pressure	-	1.2 Mpa (12 Bar).
