Technical Specification

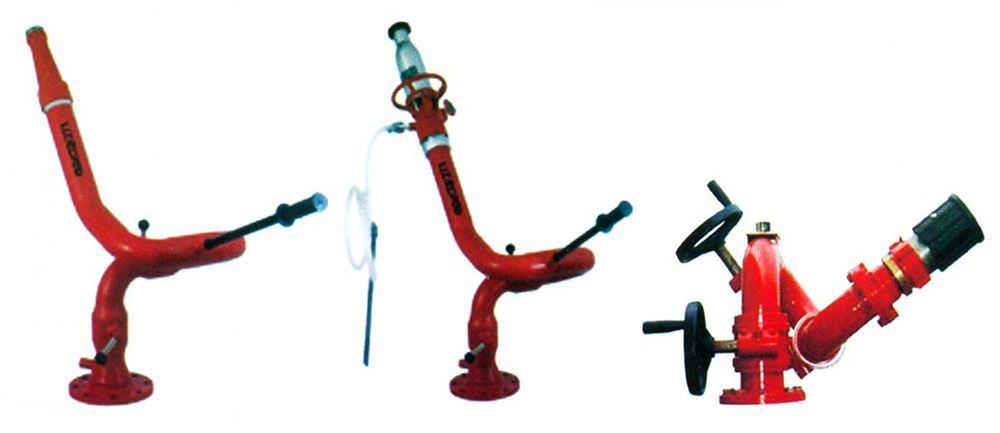

Water / Foam Monitor |
|||
Material |
Carbon Steel |
Carbon Steel |
Carbon Steel |
Maximum Operating Pressure |
12 Bar (175 PSI) |
12 Bar (175 PSI) |
12 Bar (175 PSI) |
Flow Rate |
1750 LPM @ 7Bar |
3750 LPM @ 7Bar |
1750 LPM @ 7Bar |
Throw Range |
52 Meters, Projection Angle : 30° |
67 Meters, Projection Angle : 30° |
45 Meters, Projection Angle : 30° |
Inlet Flange |
100 Nb (4") Raised Flange ANSI B 16.5 150 # |
100 NB (4") Raised Flange ANSI B 16.5 150 # |
100 NB (4") Raised Flange ANSI B 16.5 150 # |
Monitor Outlet |
2.5" Water way / Male BSP Thread Nozzle : Jet / Jet - Spray |
3" Water way / Male BSP Thread Nozzle : Jet / Jet - Spray |

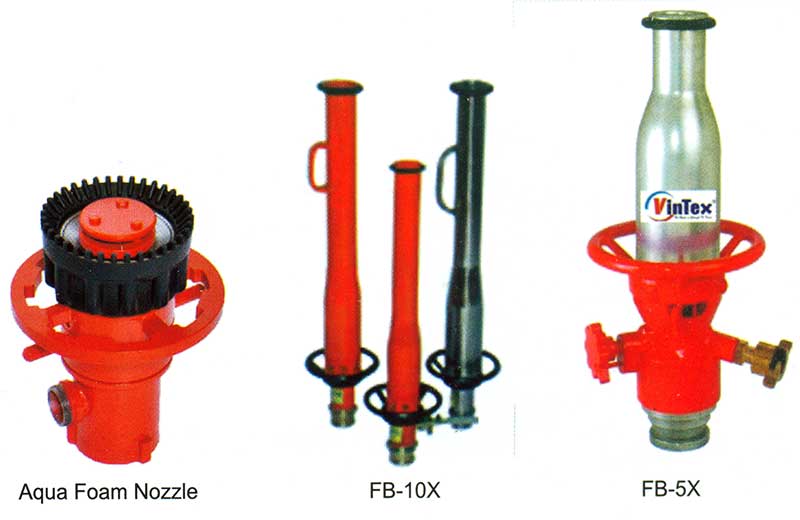

2" Water way with Jeet Spray / Aqua Foam Nozzle with Pickup Tube |
Monitor Movement |
Vertical Movement - Manual Swivel Operation With Lock Horizontal Movement - Manual Swivel Operation With Lock |
Vertical Movement - Manual Swivel Operation With Lock Horizontal Movement - Manual Swivel Operation With Lock |
Vertical Movement - Manual Swivel Operation With Lock Horizontal Movement - Manual Swivel Operation With Lock |
Hydrostatic Test Pressure |
25 Bar |
25 Bar |
25 Bar |
Monitor Rotation |
360° Continuous |
360° Continuous |
360° Continuous |
Monitor Elevation |
(+) 90° above horizontal |
(+) 90° above horizontal |
(+) 90° above horizontal |
|
(-) 45° below horizontal |
(-) 45° below horizontal |
(-) 45° below horizontal |
Finish |
Red Polyurethane |
Red Polyurethane |
Red Polyurethane |
Ordering Information |
Please Specify Monitor Model, |
Please Specify Monitor Model, |
Please Specify Monitor Model, |
|
Flange Connection, |
Flange Connection, |
Flange Connection, |
|
Nozzle Model & Flow rate |
Nozzle Model & Flow rate |
Nozzle Model & Flow rate |
